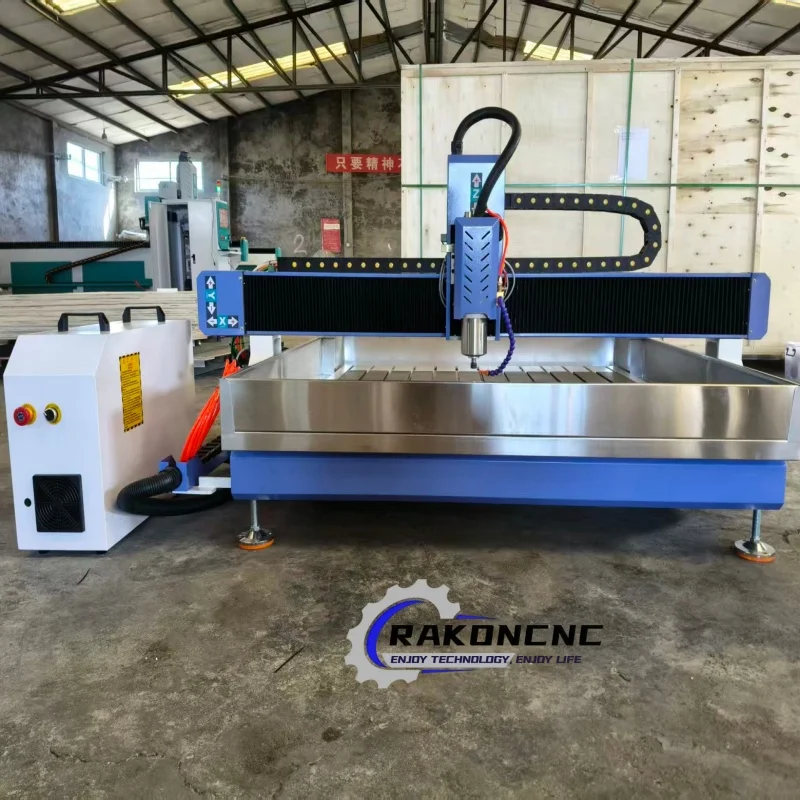

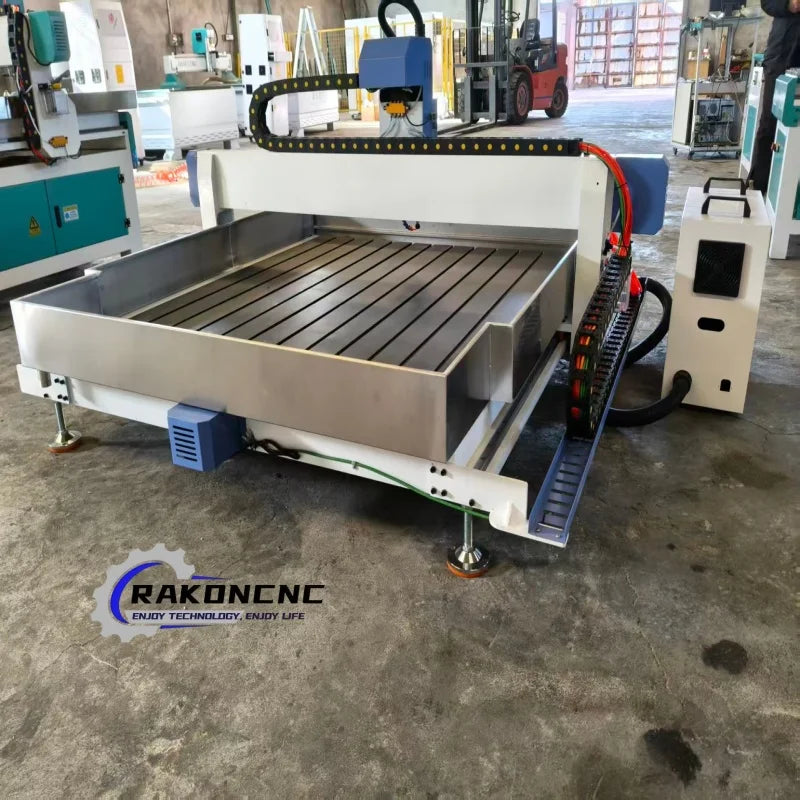

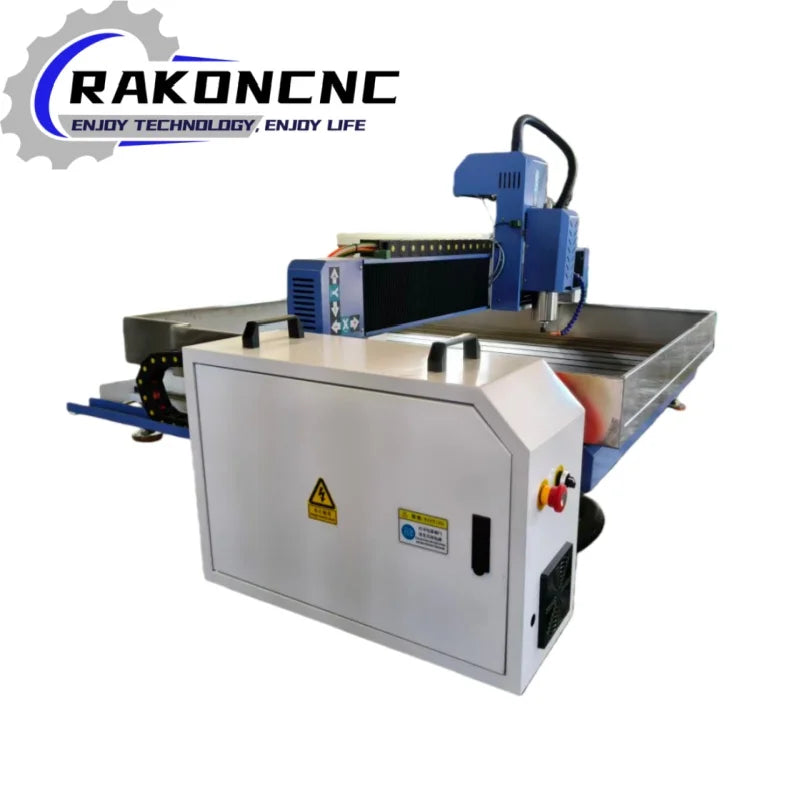

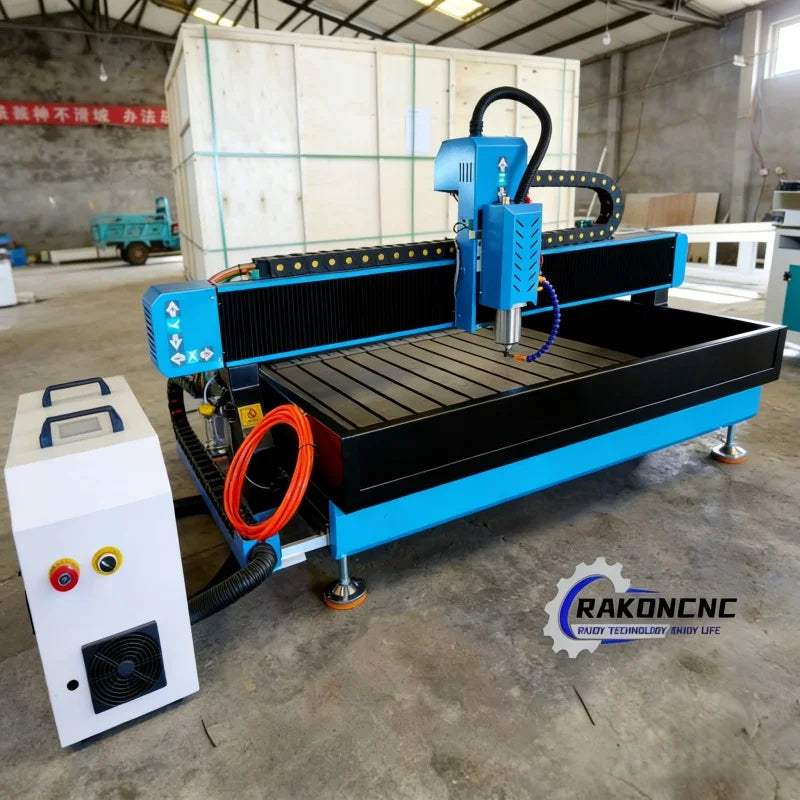

Discount Price Cnc Router 1212 1325 Advertising 3 Axis Wooden Door Manufacturing Machines for Aluminum Plywood Acrylic for Sale

Discount Price Cnc Router 1212 1325 Advertising 3 Axis Wooden Door Manufacturing Machines for Aluminum Plywood Acrylic for Sale

36,454.88 TRY
0.00 TRY 36,454.88 TRY
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
Power (W)

SPECIFICATIONS

Brand Name: rakoncnc

CNC or Not: CNC

Certification: CE

Condition: New

Control system: Nc studio; A11 DSP

Controller: MACH3

Engraving Area: Other

High-concerned chemical: None

Is Smart Device: Yes

Model Number: RCM1212

Motor: Stepper motor

Origin: Mainland China

Rail guide: Square

Spindle power: 1.5kw water cooling ( 0 - 24000rpm )

Transmit: X Y Z ball screw

Working precision: 0.05mm

Working speed: 0-15000mm/min

X,Y axis Working size: 1200x1200mm

Z axis working size: 200mm standard ( customization optional )

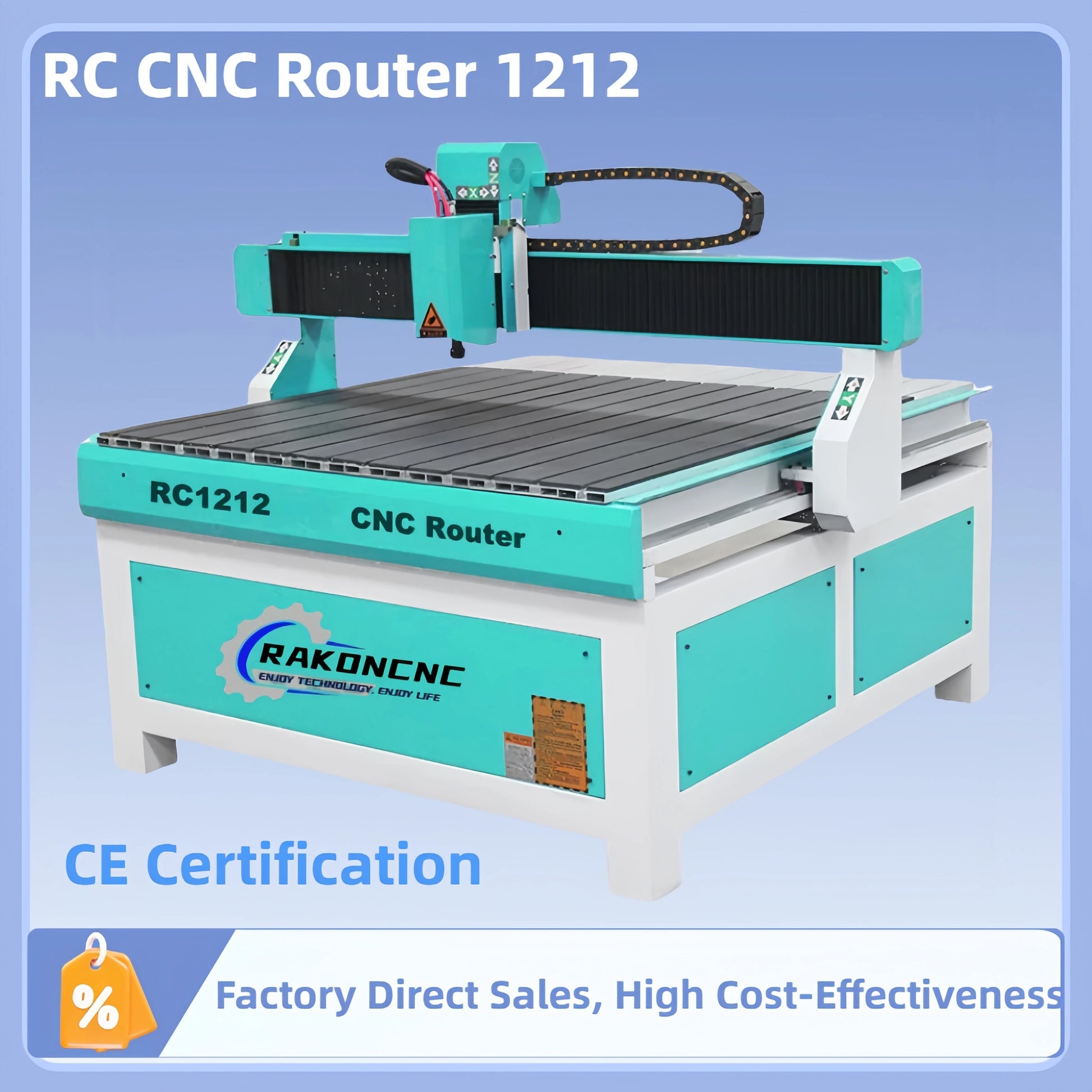

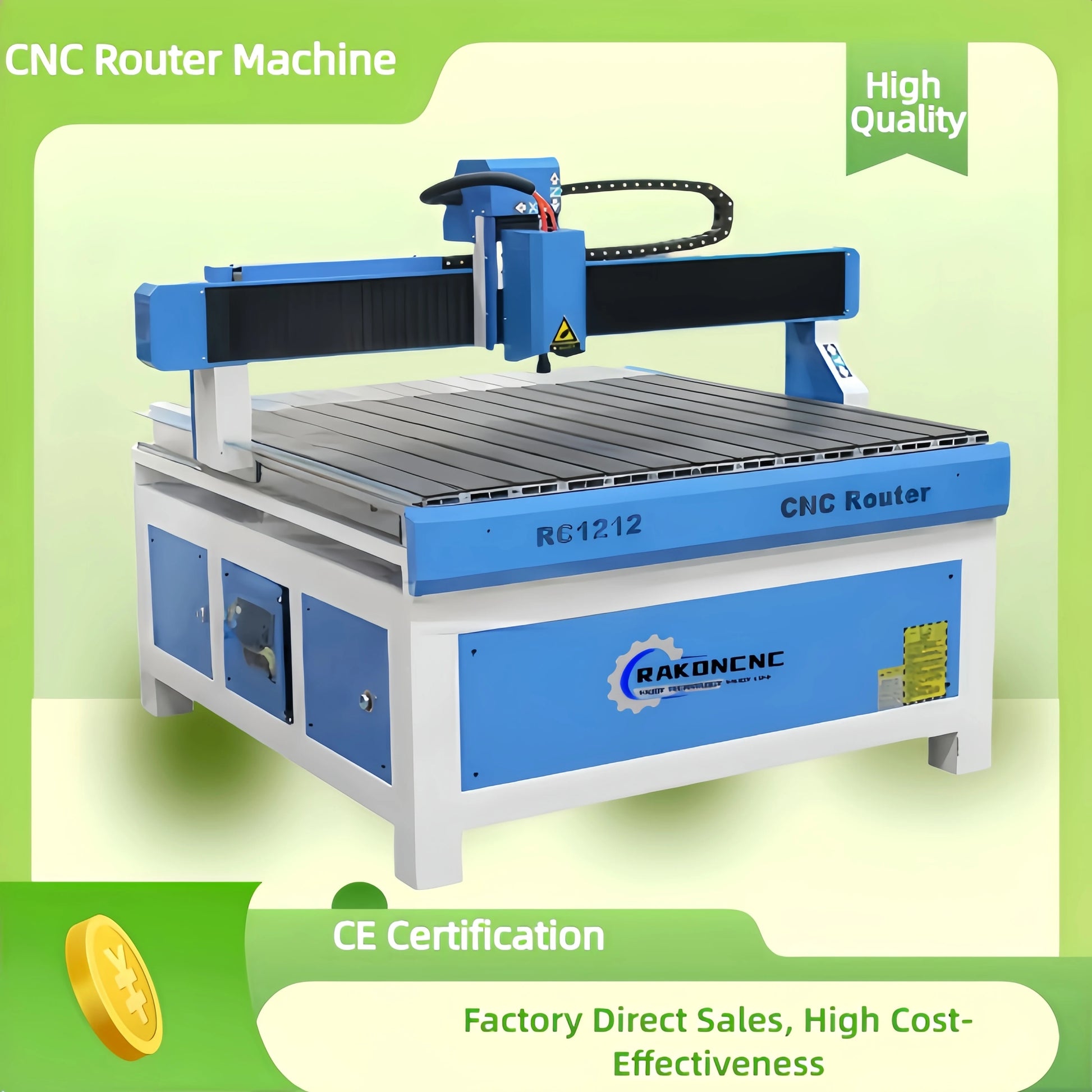

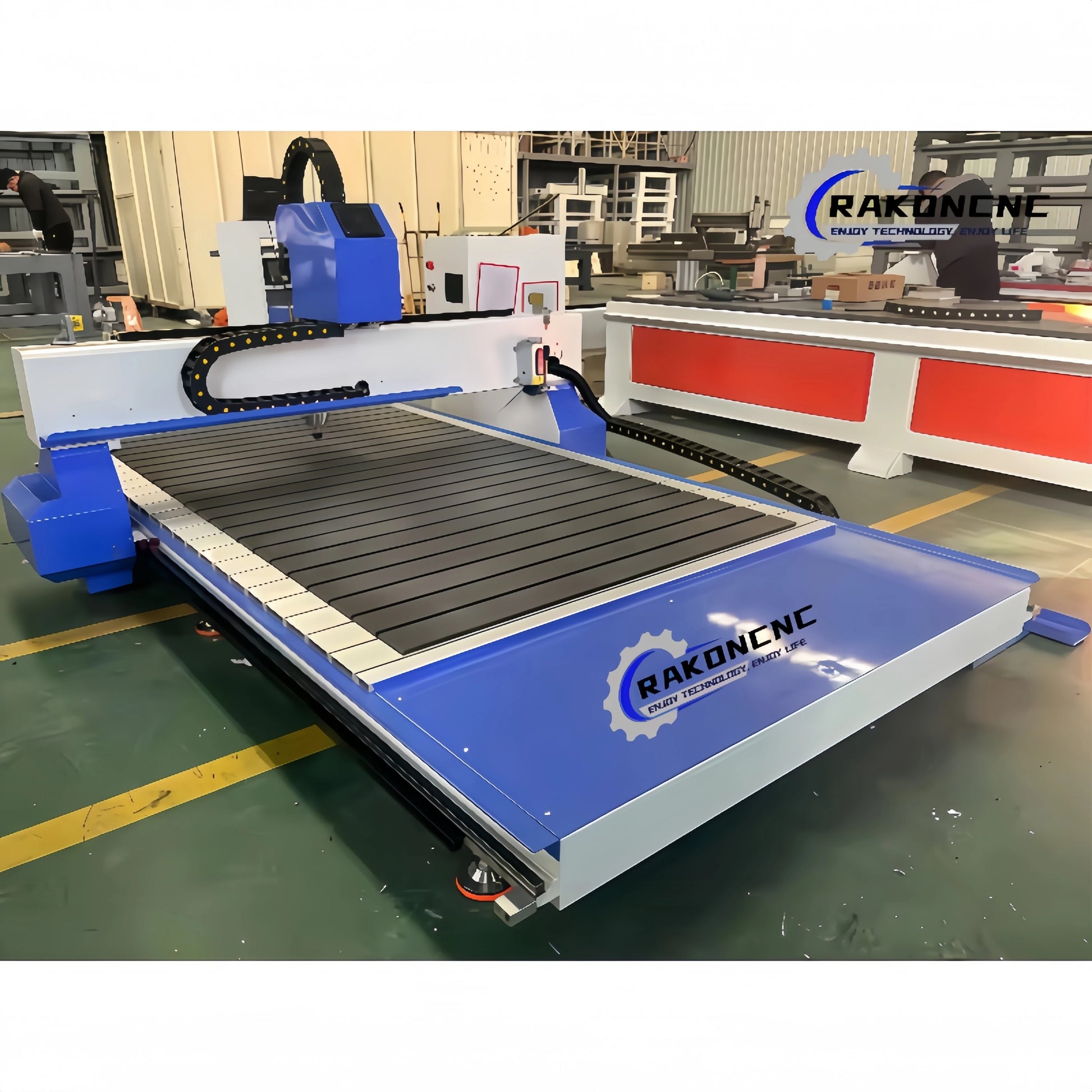

Discount Price Cnc Router 1212 1325 Advertising 3 Axis Wooden Door Manufacturing Machines for Aluminum Plywood Acrylic for Sale


Model

RCM1212

Working Area

1200×1200×200mm

Spindle Motor

3.2kw water cooling spindle

Working Mode

Stepper motor（servo is optional)

Control System

Nc studio controller, parallel interface

Drive Mechanism

Rack and pinion on x,y axis ,z axis ball screw transmission

Table Surface

T-slot table (vacuum table optional)

Frame

Seamless welded steel structure

Motion Positioning Accuracy

± 0.03/300mm

Repositioning Accuracy

± 0.05mm

Max Motion Speed

30,000mm/min

Max Engraving Speed

25,000mm/min

Rotating Speed of Spindle

2,4000rpm

Z-axis setting

Auto Z origin tool sensor

Dictate Format

G code, *.u00, *.mmg, *.plt

Operating Voltage

220V/ 380v

Software

Type3, ArtCAM software

Packing Size

3100*2250*1850mm

Lubrication System

Oil lubrication system

Gross Weight

350kg


Why choose us


1 We are a real factory offering products.

2 Free technical advice by QUALIFIED MECHANICAL ENGINEERS.

3 Company in business for many years.

4 Over 50 countries customers served!

5 Buy direct saving your money!

6 All machine with CE, ISO, BV certificate.

7 Machine and spindle warranty 1 year.

8 Our engineer can go to your country to provide technical guidance

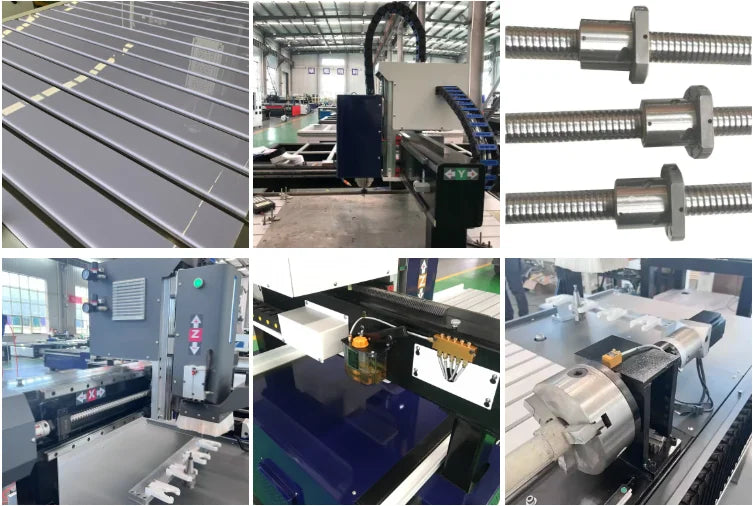

Product Features
1.Adopt imported square guide rail,double row slide block and the imported ball screw makes the machine working steadily,high precision and long life time.

2.With advanced DSP system,operated with the USB handle,convenient operation, humanization design.

3.High power spindle, brushless, water cooling, working vigbrously with low noise , guarantees long time mass processing.

4.Adopt high speed stepper motor and drivers and to motors for Y axis,max speed can reach to 35m/min,auto aligning system.

5.Compatible with type3/artcam/castmate/proe/coreldraw/wentai and other cad/cam software.


Products Description




Sample Display


  • Application material

    Wide range of application:

    Such as seal, packing, scutcheon and pane, decorating, art and craft, architecture model, souvenir, badge, electric circuitry and carpentry field.


  • Suitable for Materials:

    Engrave and cut on Acrylic sheet, ABS double color sheet, PVC foam sheet,wooden sheet, PCB Aluminum brass, steel etc.


Applications:


1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cup board doors, interior doors, sofa legs, headboards ,game cabinets, computer tables, sewing machines table, instruments etc.


2.Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding,and other advertising materials derivatives making.

3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.

4. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
5.Architectural models: engraving fine window, fencing and wall patterns, etc.




Discount Price Cnc Router 1212 1325 Advertising 3 Axis Wooden Door Manufacturing Machines for Aluminum Plywood Acrylic for Sale



Package and Delivery

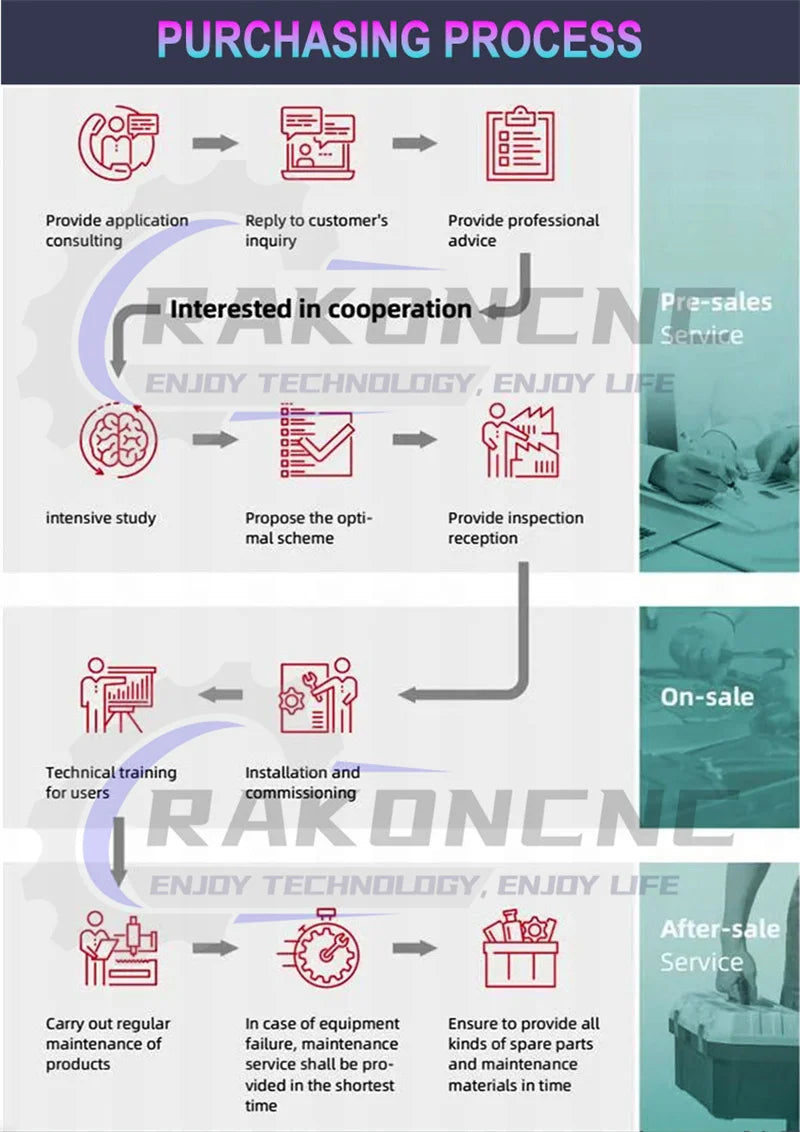

Purchasing Process


Declaration on Price

Please note this amount is only a deposit, not the total value of the equipment.

Because the machine will be customized according to detailed info; it's customized products.

Before talking details with us, don't make payment,thanks.

To confirm machine detailed info, please contact us directly.
