SiAECOSYS/QSMOTOR 12x7.5inch 1500W v1.12 48V 55kph BLDC In Wheel Hub Motor for E-Scooter
SiAECOSYS/QSMOTOR 12x7.5inch 1500W v1.12 48V 55kph BLDC In Wheel Hub Motor for E-Scooter
Verfügbarkeit für Abholungen konnte nicht geladen werden
SPECIFICATIONS
Brand Name: QSMOTOR
Country/Region of Manufacture: China
High-concerned chemical: None
Interchange Part Number: 1
Item Height: 34
Item Length: 43
Item Weight: 15.1
Item Width: 43
Manufacturer Part Number: 1
Material: aluminium
Max Speed: 48V 55kph
Motor: Hub Motor
Origin: Mainland China
Other Part Number: 1
Placement on Vehicle: REAR
Size: 12x7.5inch
Special Features: driving
Water proof: IP54
max effiency: approx88%
max troque: approx113n.m
motor certificate: CE CCC
rated power: 1500w
rated voltage: 48v
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
QSMotor 12x7.5inch 3000W 260 72V 70kph HIgh power BLDC in wheel hub motor with sabvotonSVMC72150 controller for electric scooter
It's QS electric In-Wheel Scooter Hub kits, suit for electric scooter 72V 70km/h.
For 12inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.
12X7.5inch as default，if you need other size, please feel free to contact sellers.

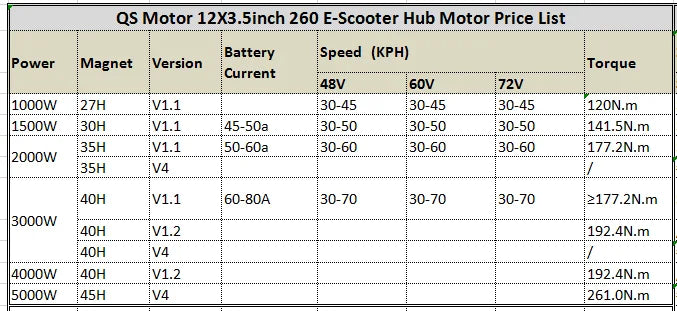

There are other three width of wheel, 12X2.5inch(800w-3000w),12x3.5inch(800w-12kw)and12X5.0inch(1500w-5000w)detachable wheel designfor choice.
For E-scooter wheel hub motor, we also provide the10-17inch type, you can click the picture of hyperlink for the detailed information:
For 1500W motor kits, it could be used for electric scooter, which could be 48V 55KPH.
e.g. Electric Scooter
E-Scooter weight, approx50kg+150kg
Speed: peak55km/h
Climbing slope:15degree@200kg
Tire:235/30-12
Battery:48V20Ah
One set including below kits
1. 1pc X QSMOTOR 12x7.5inch 1500W V1.12 electric wheel hub motor
Key Features
1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%

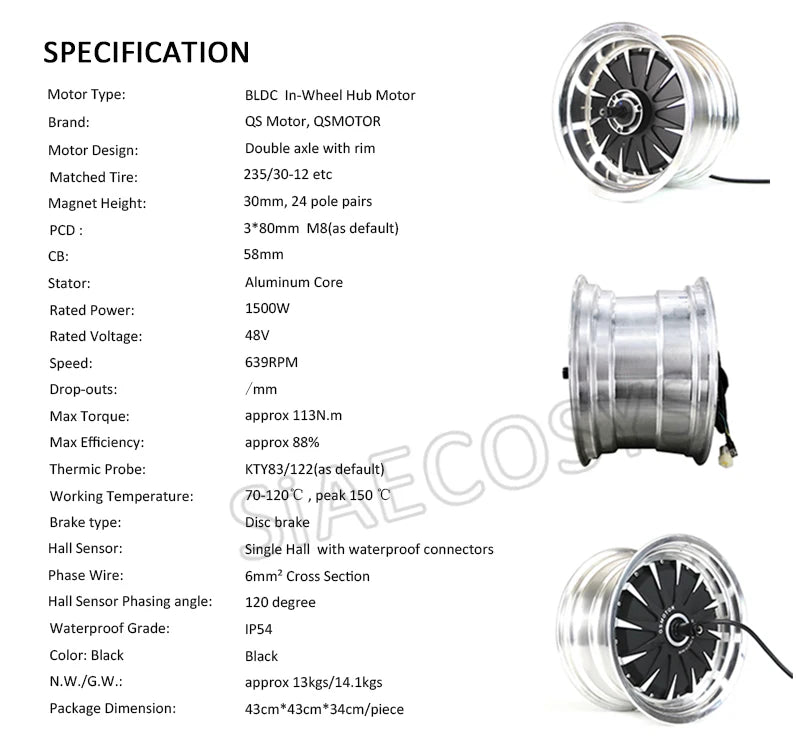

1. Generally SPEC
1.QSMOTOR12x7.5inch1500W V1.12Electric Scooter Hub Motor

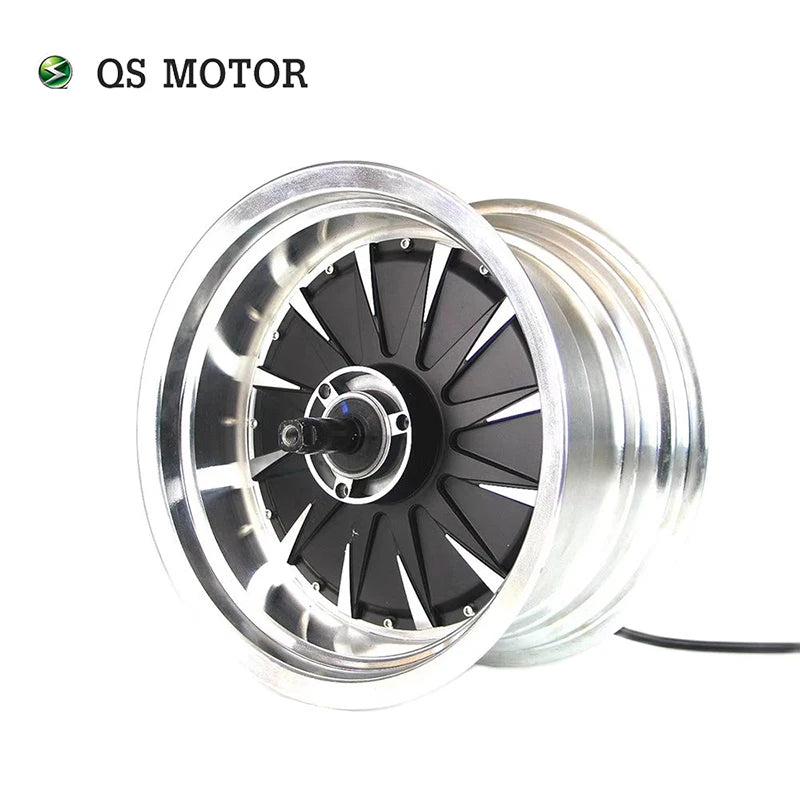

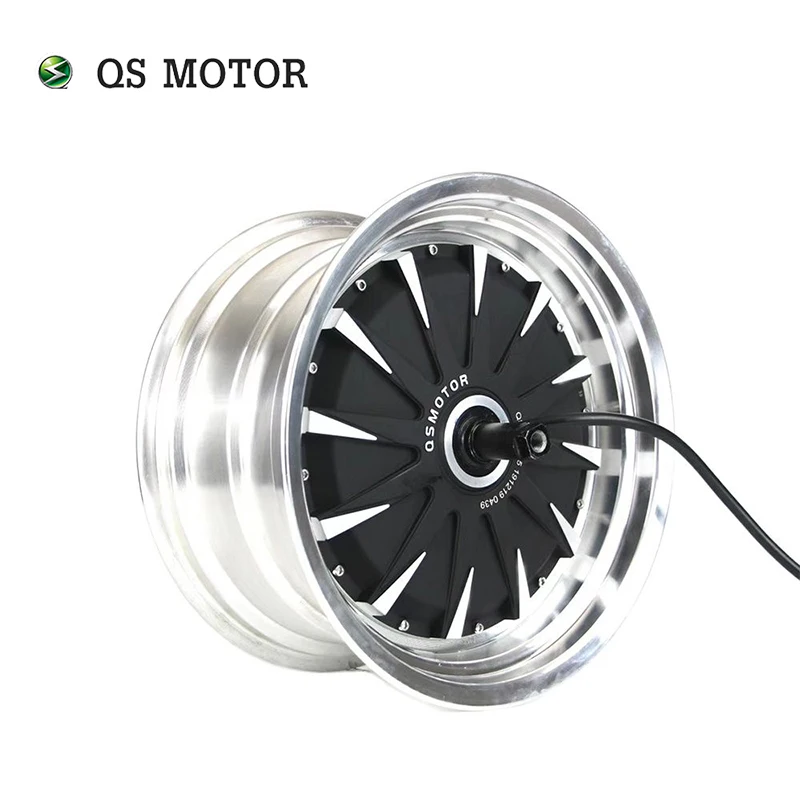

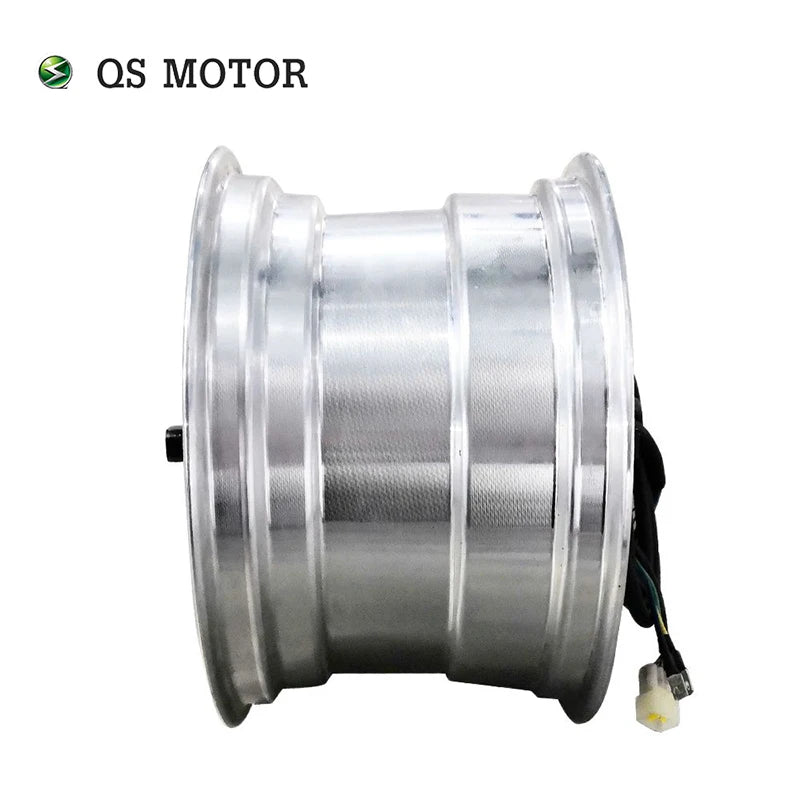

Product show:

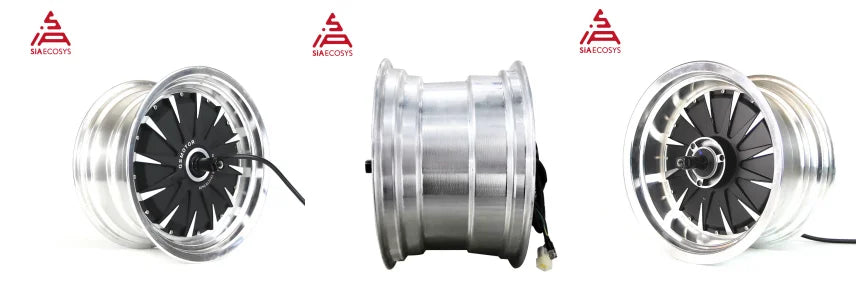

Cover 1:

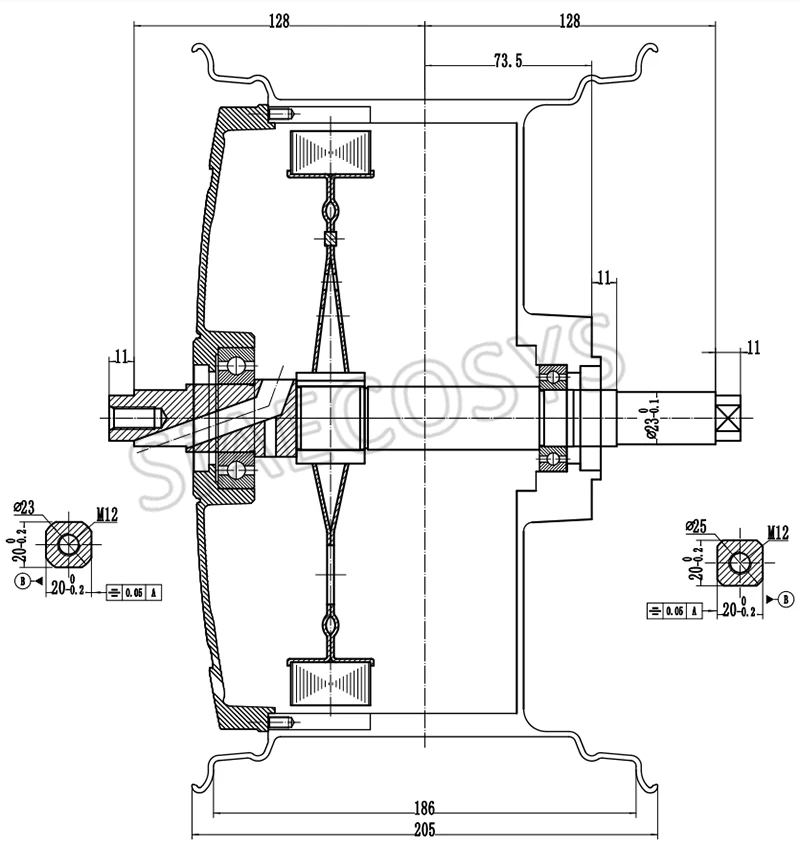

Dimension Drawing
12x7.5inch in wheel hub motor:
Other powe recommended:

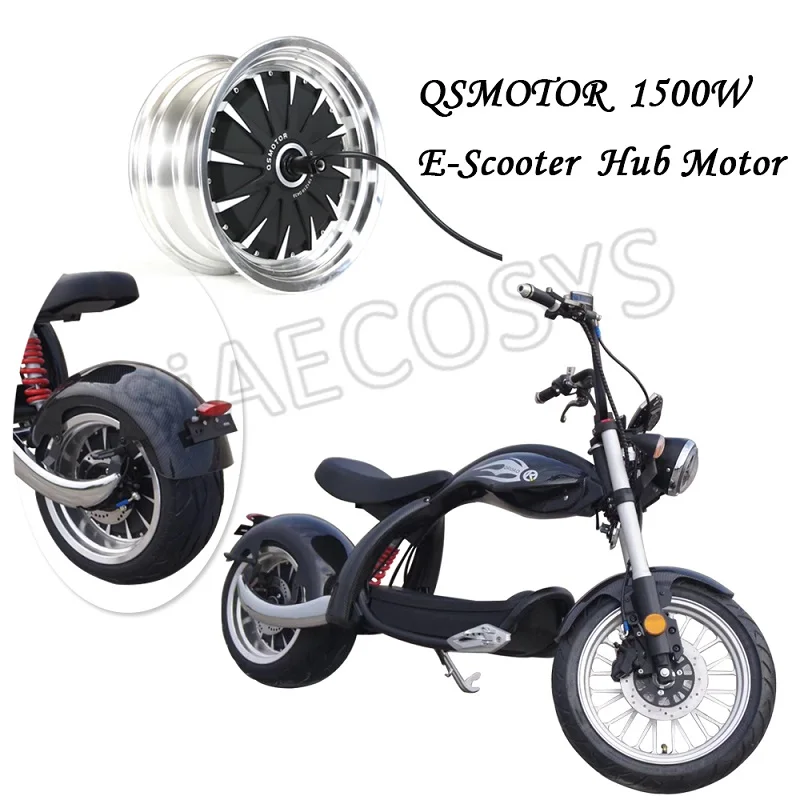

Application：
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
A note to client
1. Please contact seller confirm the parameter, otherwise we will produce as default.
2. Please extended 15 days more at least for order prepare when motor no in stock. (Most of motor is customized based on application, without in stock).
3. When place order please leave email address, for seller provide manual.
4. Please read manual careful before using motor and controller, and if meet problem please contact seller in time, and don't disassemble cargo without seller permit, otherwise there will be no warranty.
